CPU
2x up to 32 core Intel Xeon (Sapphire Rapids)
-
MEMORY
16x DDR5 4800MHz DIMM sockets (Max: 4 TB)
-
STORAGE
12x 3.5"NVMe drive bays (Max: 264 TB)
-
CONNECTIVITY
Onboard 2x 10Gb NICs & Optional: 10GbE, InfiniBand, OmniPath, 100GbE, 50GbE
-
DENSITY
2U rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Additional server options
The Intel Xeon Sapphire Rapids ACTserv family consists of other node types including 1U, and 2.5" storage systems
Technical Specifications
In the box

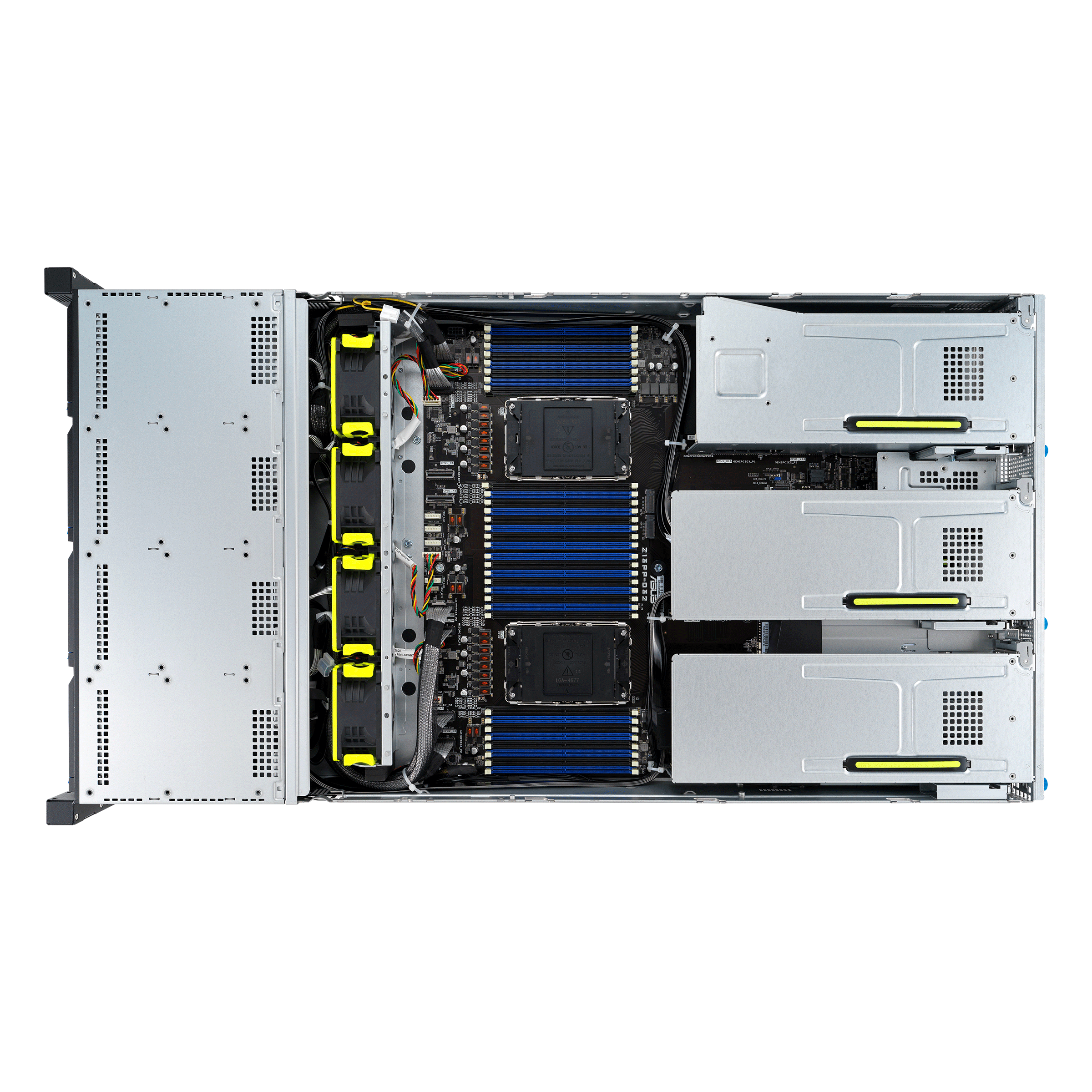

- ACTserv x2421 system
- Documentation
Processor
- 2x 4th generation Intel Xeon series processors
- Intel "Sapphire Rapids" microarchitecture
Chipset
- Intel C741 series
Memory
- 4800MHz DDR5 Memory
- 32x DIMM sockets for support up to 4TB
Storage
- 12x 3.5 inch U.2 NVMe drive bays
Management
- Integrated IPMI 2.0 module
- Integrated management controller providing iKVM and remote disk emulation
I/O Connections
- 2x PCI-e Gen5 x16 & 5x Gen5 x8 PCI-e slot or 4x PCI-e Gen5 x16 & Qty 1x Gen5 x8 PCI-e slot
- 2x Rear USB ports
- 1x VGA
- 1x Dedicated RJ45 IPMI ethernet
Electrical requirements
- High-efficiency power supply (greater than 90%)
- Output power: Single or Dual 1300W
- Universal input voltage 100V to 240V
- Frequency: 50Hz to 60Hz, single phase
Operating System
- RedHat Linux 8 and newer (many other distributions supported, call for details)
