MSRP price as configured. $5,383
A newer version of this model is now available
This model has been replaced by a newer model, the ACTserv x2380c.
PrevNext
1
2
3
4
  • CPU

    2x up to 26 core Intel Xeon SP (Cascade Lake)

  • MEMORY

    24x DDR4 2933MHz DIMM sockets (Max: 6 TB)

  • STORAGE

    8x 2.5" SATA,SSD drive bays (Max: 96 TB)

  • ACCELERATORS

    Max 8x NVIDIA Tesla, NVIDIA Quadro, NVIDIA GTX accelerators

  • CONNECTIVITY

    Onboard 2x 1Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, OmniPath, 100GbE

  • DENSITY

    2U rackmount chassis with redundant power

Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Base system

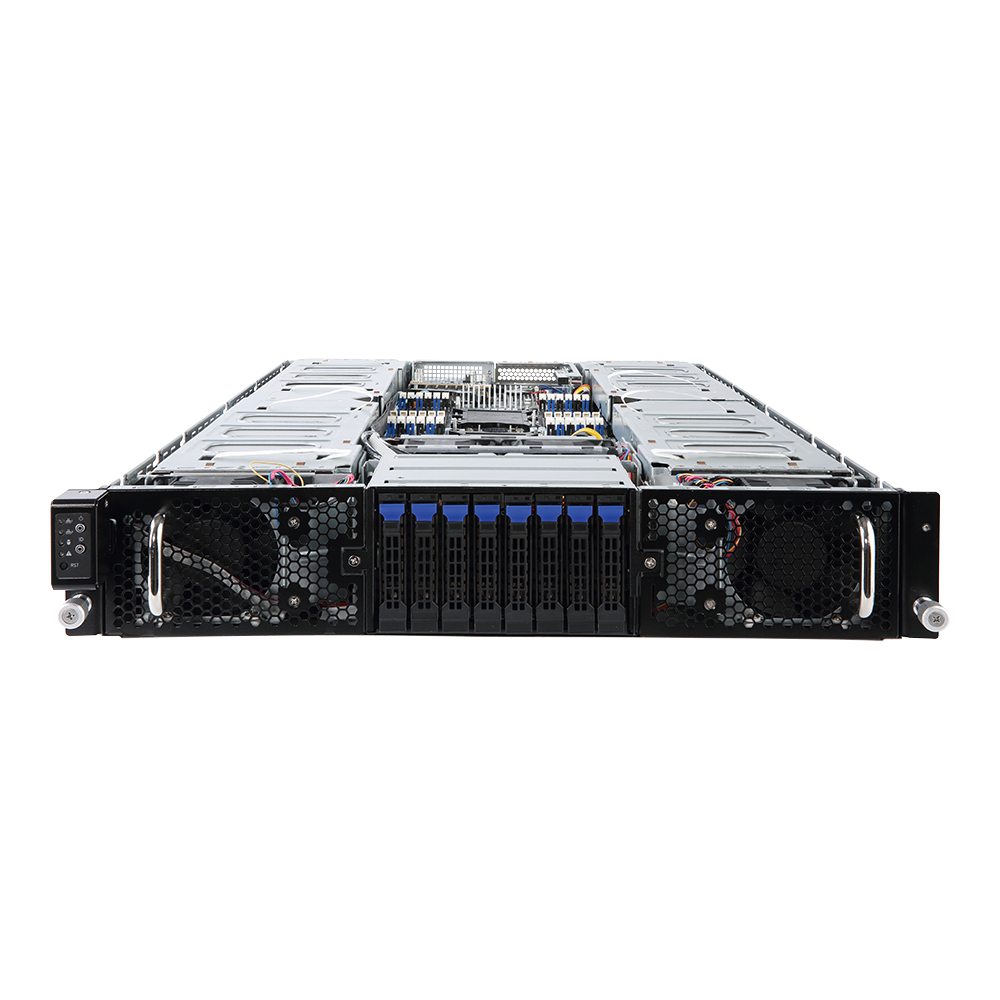

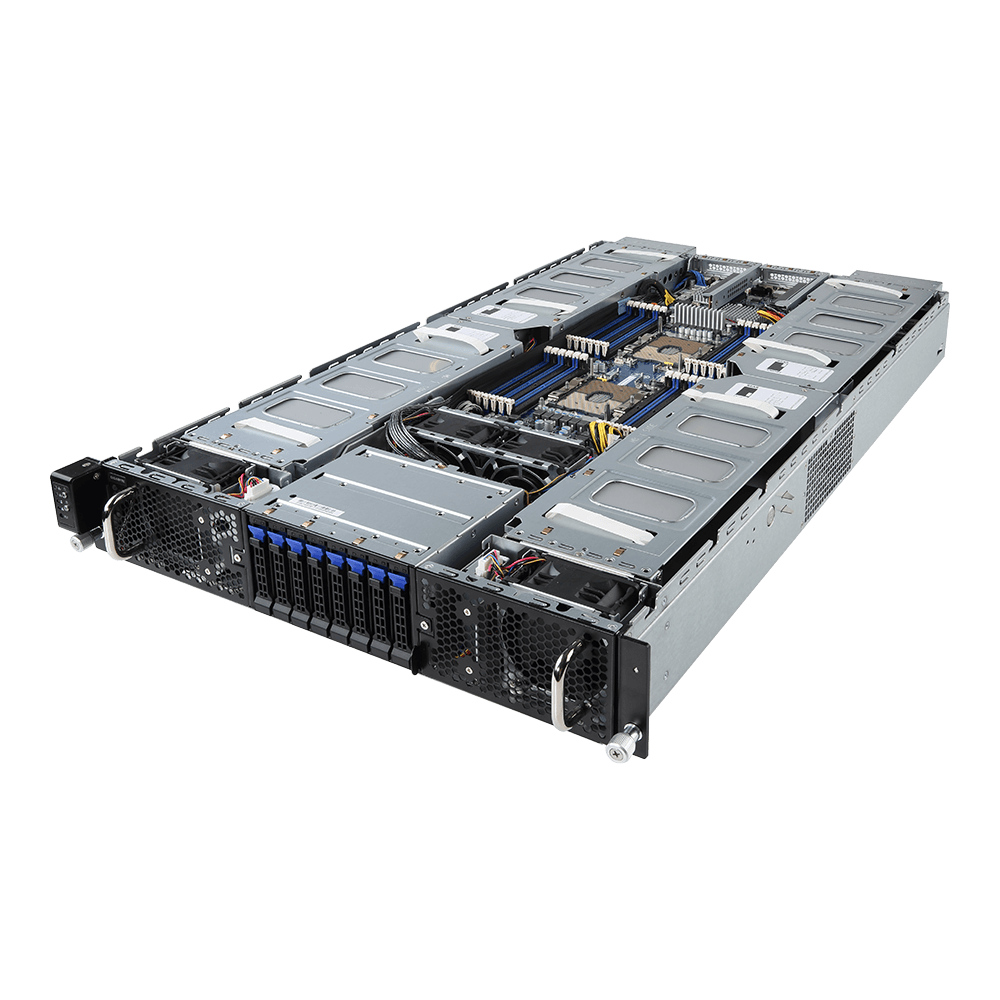

2U Dual Xeon Server with support for 8x GPUs
Processor(s)
2x Intel 8-Core Xeon Silver 4208 2.1GHz - 85W
+
Qty
Bronze (32XX) - Max 1TB RAM per processor
Silver (42XX) - Max 1TB RAM per processor
Gold (52XX) - Max 1TB RAM per processor
Gold (62XX) - Max 1TB RAM per processor
Platinum (82XX) - Max 1TB RAM per processor
Large Memory - Max 4.5TB RAM per processor
Memory
96GB - 6x 16GB DDR4 2933MHz
+
48GB Memory Options
96GB Memory Options
192GB Memory Options
384GB Memory Options
768GB Memory Options
1.5TB Memory Options
3TB Memory Options
6TB Memory Options
Drive configuration
8x 2.5" SATA hotswap drive bays
+
Storage 2.5" SATA drive bays
None
+
You may select up to 8 items:
GPU card type
Tesla Data Center GPUs
Tesla Series GPUs are the recommended configuration.
+
GPU expansion slots
None
4x GPUs per CPU, must populate both CPUs to use all 8x GPUs
+
You may select up to 8 items:
Networking
2x RJ45 10Gb ethernet ports
Expansion slot
No card installed
2x PCI-E x16
+
You may select up to 2 items:
Management
Remote iKVM with in-band management
Power supply
Dual 2200W redundant power supply (requires 208/240V)
Power cables
2x 3ft Power Cable (C19 / C20) - Black
+
Qty
Warranty
1 year standard warranty
+
Standard - (8x5 coverage, ground shipping)
Silver - (24x7 coverage, overnight shipping)
Gold - (8x5 on-site coverage, overnight shipping)
Platinum - (24x7 on-site coverage, overnight shipping)

Power estimates

  • Watts
    2,500
  • BTU
    8,530/hr
  • AMPS (110V)
    22.7
  • AMPS (208V)
    12.0
* Power numbers are estimates and subject to change based on actual system configuration, running application, etc. Get a quote for specifics.

Technical Specifications

In the box
  • ACTserv system
  • Documentation
Processor
  • 2x 2nd Generation Intel Xeon SP series processors
  • Intel "Cascade Lake" microarchitecture
Chipset
  • Intel C624 series
Memory
  • 2933MHz DDR4 memory
  • 24x DIMM sockets for support up to 6.0TB (depends on CPU)
Storage
  • 8x 2.5" SATA drive bay for Hard Drive / SSD
Management
  • Remote iKVM with in-band management
I/O Connections
  • Dual 1Gb Ethernet
  • 2 x USB 3.0 port
  • 1 x VGA port
Electrical requirements
  • 2+1 Redundant 80+ 2200W PSU
Size & Weight
  • Height: 3.5 inches (2U)
  • Width: 17 inches
  • Depth: 31.5 inches
  • Weight: Base config 75 lbs.; varies based on configuration
Operating System
  • RedHat Linux 7 and newer (most other distributions supported, call for details)
