A newer version of this model is now available
This model has been replaced by a newer model, the ACTserv x2220.
-
CPU
2x up to 22 core Intel Xeon SP (Skylake)
-
MEMORY
24x DDR4 2666MHz DIMM sockets (Max: 1.5 TB)
-
STORAGE
8x 3.5"SATA,SSD drive bays (Max: 80 TB)
-
CONNECTIVITY
Onboard 2x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, OmniPath, 100GbE
-
DENSITY
2U rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Technical Specifications
In the box

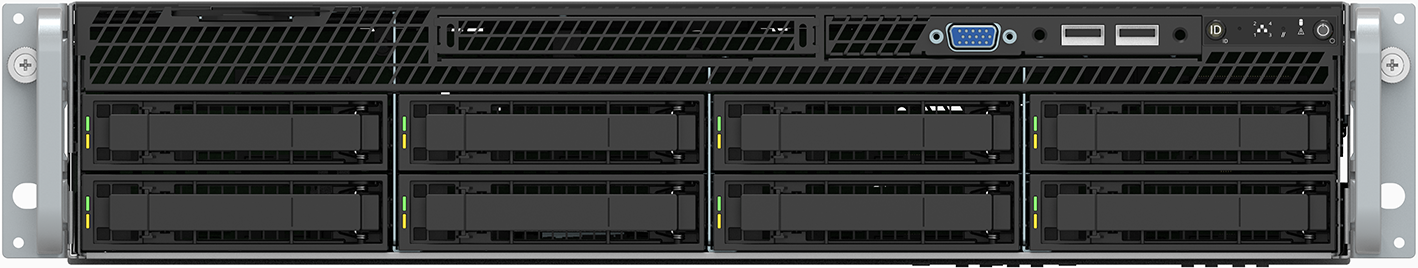

- ACTserv x2120 system
- Documentation
Processor
- 2x Intel Xeon SP series processors
- Intel "Skylake" microarchitecture
Chipset
- Intel C624 series
Memory
- 2666MHz DDR4 memory
- 24x DIMM sockets for support up to 1.5TB
Storage
- 8x 3.5" hot-swap SATA drive bay and 2x rear hot-swap 2.5" SATA drive bays
- Support RAID level 0,1,10,5,6 with Linux software RAID or optional hardware RAID controller
- Support for high-performance solid state drives (SSD)
Management
- Integrated IPMI 2.0 module
- Integrated management controller providing iKVM and remote disk emulation
I/O Connections
- 2x open PCI-e 3.0 expansion slots running at 16x; 3x open PCI-e 3.0 expansion slots running at 8x; and 1x open PCI-e 2.0 expansion slot running at 4x
- 2x independent 10GbE BaseT Ethernet interfaces
- 5x USB 3.0 ports
Electrical requirements
- High-efficiency power supply (greater than 90%)
- Output power: single 1300W; optional redundant 1300W
- Universal input voltage 100V to 240V
- Frequency: 50Hz to 60Hz, single phase
Size & Weight
- Height: 3.5 inches (2U)
- Width: 19 inches
- Depth: 26 inches
- Weight: Base config 50lbs, varies based on configuration
Operating System
- RedHat Linux 6 and newer (most other distributions supported, call for details)
