A newer version of this model is now available
This model has been replaced by a newer model, the ACTserv e1411.
-
CPU
2x up to 96 core AMD EPYC (Genoa)
-
MEMORY
24x DDR5 4800MHz DIMM sockets (Max: 3 TB)
-
DENSITY

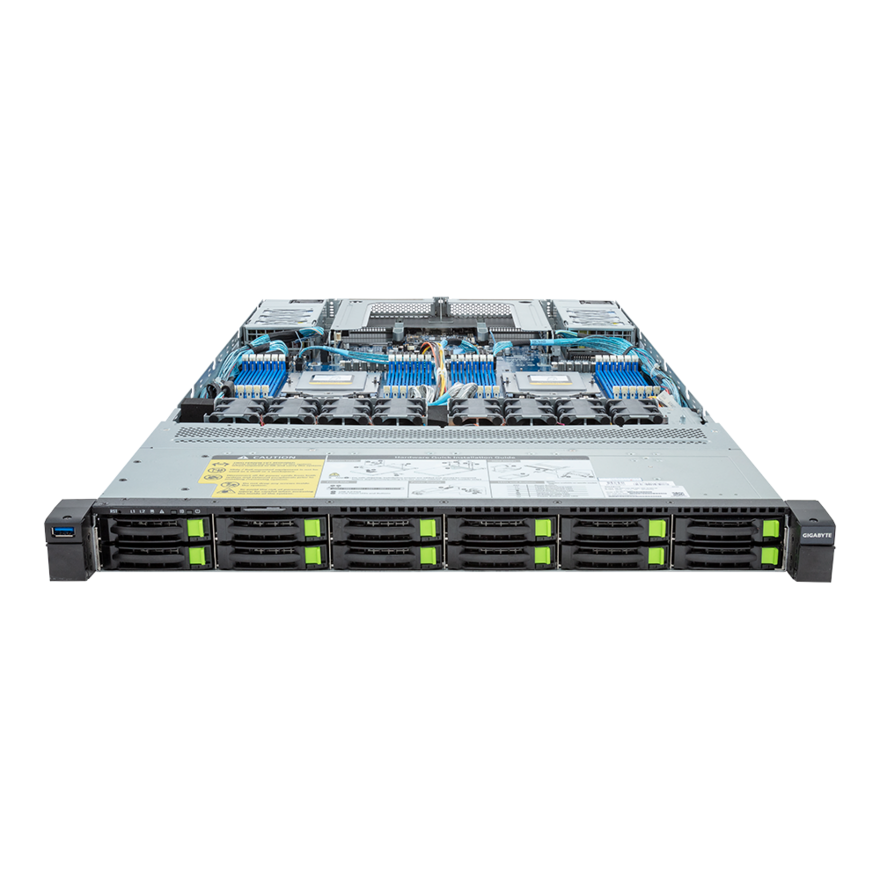

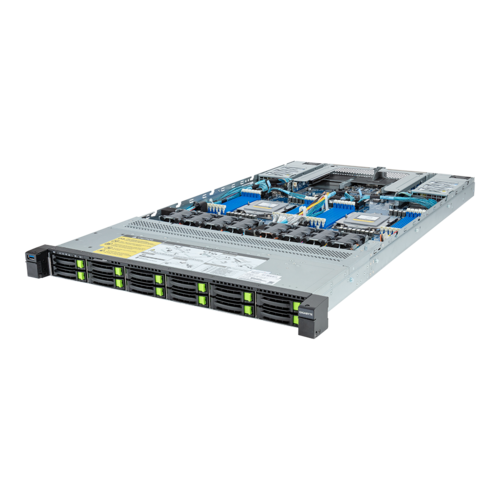

1U rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Additional server options
The AMD Genoa ACTserv family consists of other node types including 1U storage systems
Technical Specifications
In the box
- ACTserv e1410 system
- Documentation

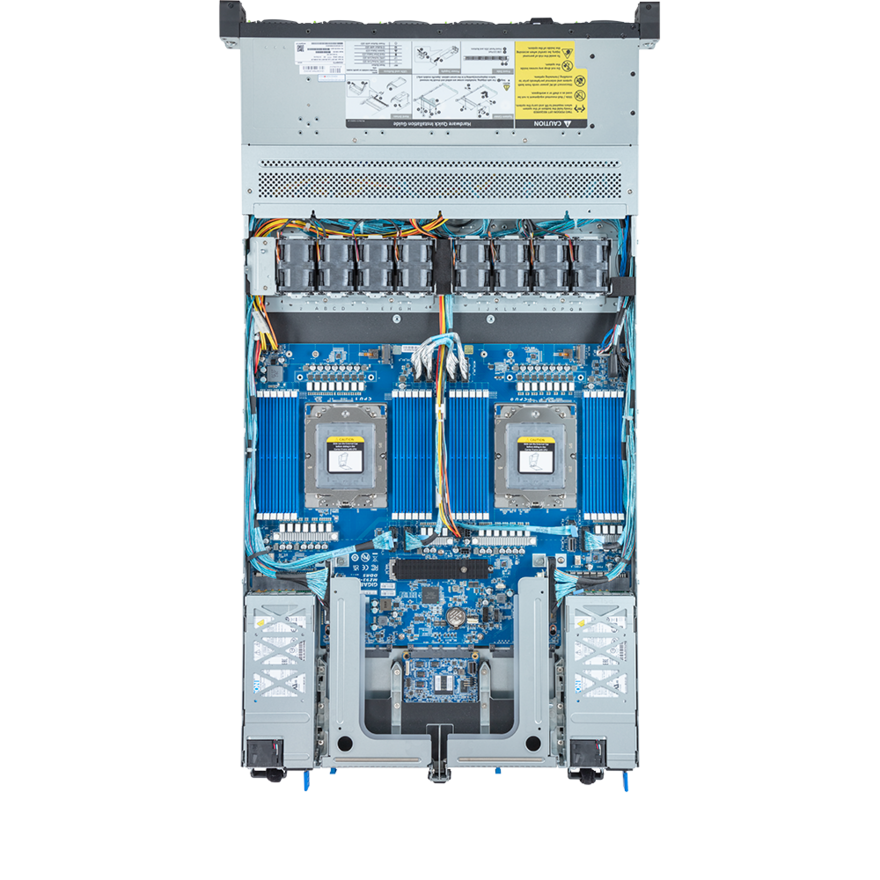

Processor
- 2x AMD Genoa series processors
- AMD "Genoa" microarchitecture
Chipset
- AMD Genoa chipset
Memory
- 4800MHz DDR5 memory
- 24x DIMM sockets for support up to 3TB
Storage
- 12x 2.5" NVMe or SATA Hot-swap bays
Management
- Integrated IPMI 2.0 module
- Integrated management controller providing iKVM and remote disk emulation

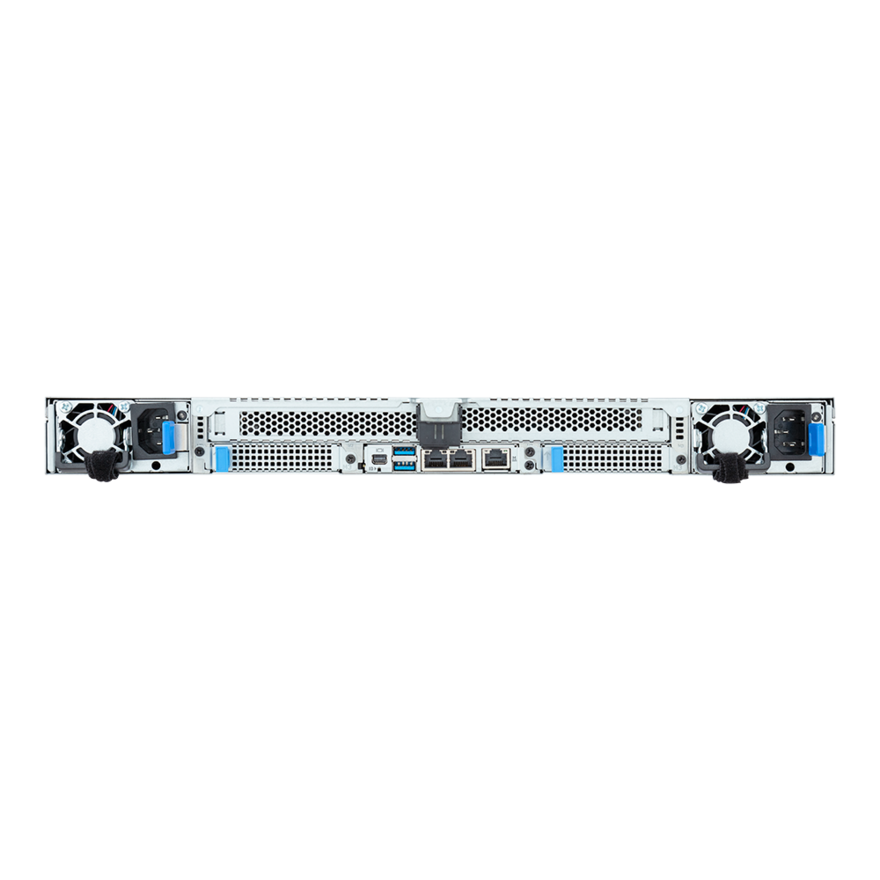

I/O Connections
- 2x PCI-e Gen5 x16 & 1x Gen5 x8 PCI-e slots
- 2x Rear USB ports
- 1x VGA
- 1x Dedicated RJ45 IPMI ethernet
Electrical requirements
- High-efficiency power supply (greater than 90%)
- Output power: Single or Dual 1600W
- Universal input voltage 100V to 208V (minimum required to run at full capacity)
- Frequency: 50Hz to 60Hz, single phase
Operating System
- RedHat Linux 8 and newer (many other distributions supported, call for details)
