A newer version of this model is now available
This model has been replaced by a newer model, the ACTserv x2310.
-
CPU per node
2x up to 22 core Intel Xeon SP (Cascade Lake)
-
MEMORY per node
16x DDR4 2933MHz DIMM sockets (Max: 1 TB)
-
STORAGE per node
6x 2.5" SATA drive bays (Max: 23.04 TB)
-
CONNECTIVITY per node
Onboard 2x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, OmniPath, 100GbE
-
DENSITY
Compute Block multi-node rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Technical Specifications
In the box

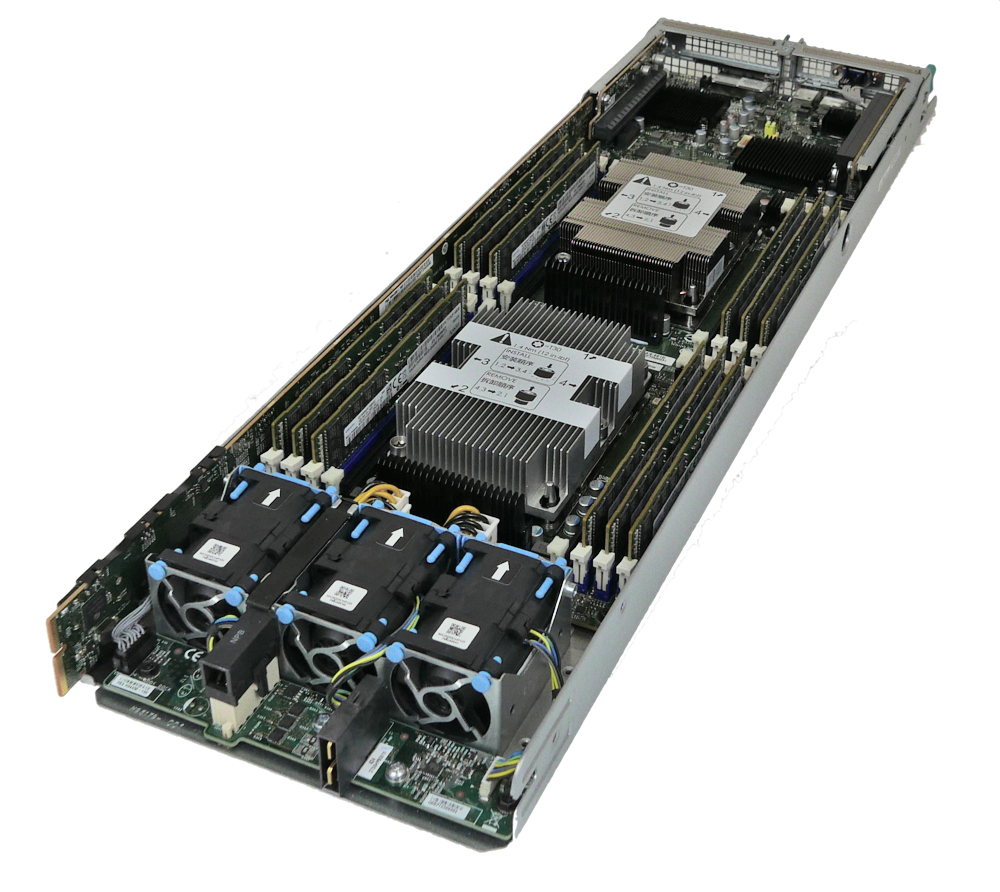

- ACTblade x230 system
- Documentation
Processor (per node)
- 2x 2nd generation Intel Xeon SP series processors
- Intel "Cascade Lake" microarchitecture
Chipset (per node)
- Intel C624 series
Memory (per node)
- 2933MHz DDR4 memory
- 16x DIMM sockets for support up to 1TB
Storage (per node)
- 6x 2.5" SATA/SSD drive bay
- or 4x 2.5" SATA/SSD drive bay and 2x 2.5" U.2 NVMe drive bay
Management (per node)
- Integrated IPMI 2.0 module
- Integrated management controller providing iKVM and remote disk emulation
I/O Connections (per node)
- 1x open PCI-e 3.0 expansion slot running at 16x
- 2x independent 10Gb RJ-45 ethernet interfaces
- 2x USB ports
- 1x VGA port
Electrical requirements
- High-efficiency power supply (greater than 90%)
- Output power: redundant 2130W
- Universal input voltage 100V to 240V
- Frequency: 50Hz to 60Hz, single phase
Size & Weight
- Height: 3.5 inches (2U)
- Width: 19 inches
- Depth: 28 inches
- Weight: Base config 100lbs, varies based on configuration
Operating System (per node)
- RedHat Linux 6 and newer (most other distributions supported, call for details)
