A newer version of this model is now available
This model has been replaced by a newer model, the ACTstor x4150.
-
CPU
2x up to 22 core Intel Xeon E5v4 (Broadwell)
-
MEMORY
16x DDR4 2400MHz DIMM sockets (Max: 512 GB)
-
STORAGE
36x 3.5" & 2x 2.5" SATA,SSD drive bays (Max: 360 TB)
-
CONNECTIVITY
Onboard 2x 10Gb NICs & Optional: 40GbE, InfiniBand, OmniPath, 100GbE
-
DENSITY
4U rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Technical Specifications
In the box
- Server system
- Rackmount hardware
- 110V or 208V power cord
- Documentation
Processor
- 2x Intel Xeon E5-2600v4 series processors
- Intel "Broadwell" microarchitecture
- Integrated memory controller and 2x QPI interconnects per socket
- 14nm process technology
Chipset
- Intel C612 series
Memory
- 2400MHz DDR4 memory
- 16x DIMM sockets for support up to 512GB
Storage

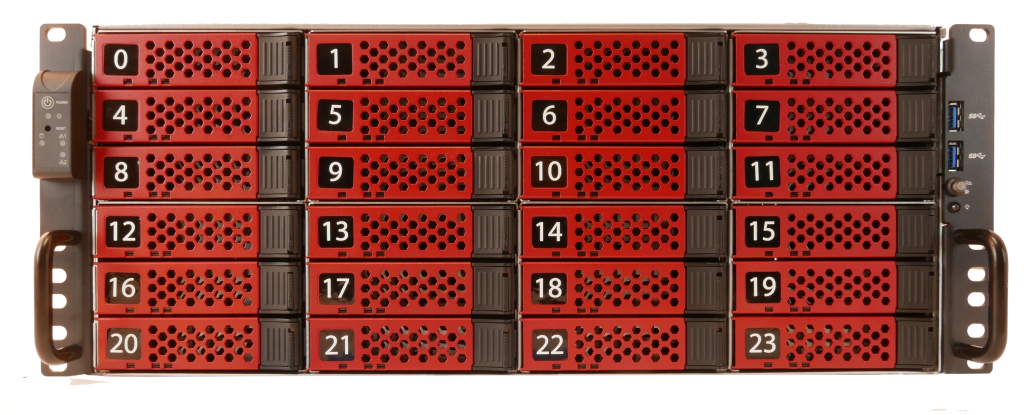

- 36x 3.5" hot-swap SATA drive bays (24x in front; 12x in rear)
- Support RAID level 0,1,10,5,6 with Linux software RAID or optional hardware RAID controller
- Support for high-performance solid state drives (SSD)
Management
- Integrated IPMI 2.0 module
- Integrated management controller providing iKVM and remote disk emulation
I/O Connections
- 4x open PCI-e 3.0 expansion slots running at 16x; 1x open PCI-e 3.0
- expansion slots running at 8x; 1x open PCI-e 2.0 expansion slot running at 4x
- 2x independent 10Gb BaseT Ethernet interfaces
- 7x USB 3.0 ports
- 1x VGA port
Electrical requirements
- High-efficiency power supply (greater than 80%)
- Output power: redundant 1200W
- Universal input voltage 100V to 240V
- Frequency: 50Hz to 60Hz, single phase
Size & Weight
- Height: 7 inches (4U)
- Width: 19 inches
- Depth: 26 inches
- Weight: Base config 100lbs, varies based on configuration
Operating System
- RedHat Linux 6 and newer (most other distributions supported, call for details)
